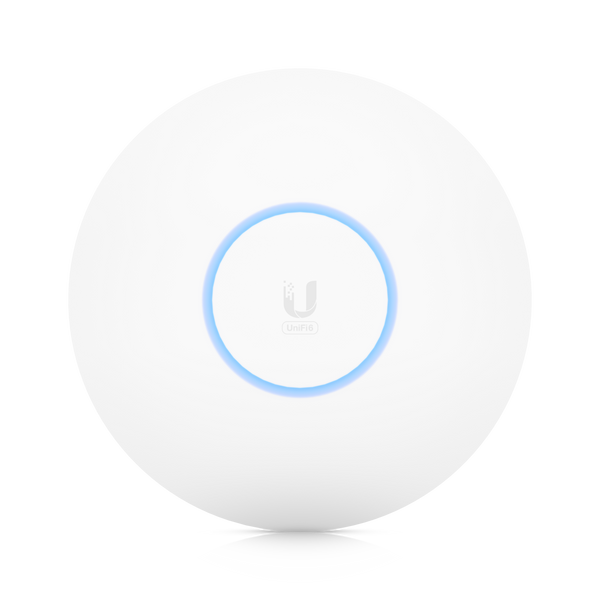

Ubiquiti UniFi Wi-Fi 6 Pro AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 573.5 Mbps & 5GHz @ 4.8Gbps
Not sure about compatibility or installation? Ask a technician before ordering.
Ask Western TechnologyDESCRIPTION
Access Point WiFi 6 Pro
Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.
Note: Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue colour modes.
Best-in-class Wi-Fi coverage and performance
The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands.
Features
- Dual-band WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- 300+ concurrent client capacity
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
- Included universal mounting plate, backing plate, and screw kit
Simultaneously connect to more devices
Create and support over 300 distinct client connections. The WiFi 6 Pro simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Easily set up and grow your network
UAPs can be locally or remotely managed with your UniFi Network application running on a UniFi OS Console. UAPs can also be set up as independent devices, but doing so will limit your configuration and remote access options. Access your UAPs on UniFi Network by going to unifi.ui.com or downloading the mobile app (Android / iOS).
UniFi Network Application
Set up devices quickly and manage them on the go with a powerful mobile app.
Ø197 x 35 mm
Without mount: 460 g
With mount: 600 g
Plastic
SGCC Steel
IP54
Ethernet
Bluetooth
(1) GbE RJ45 port
Factory Reset
White/Blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
PoE
44 to 57VDC
13W
2.4 GHz - 22 dBm
5 GHz - 26 dBm
2.4 GHz - 2 x 2 (UL MU-MIMO)
5 GHz - 4 x 4 (DL/UL MU-MIMO)
2.4 GHz - 573.5 Mbps
5 GHz - 4.8 Gbps
2.4 GHz - 4 dBi
5 GHz - 6 dBi
Wall/Ceiling (included)
-30 to 60° C
5 - 95% Noncondensing
CE, FCC, IC
802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
8 per Radio
802.1Q
Per-User Rate Limiting
Supported
300+
Yes*
*Supported with upcoming firmware versions
6, 9, 12, 18, 24, 36, 48, 54 Mbps
1, 2, 5.5, 11 Mbps
6, 9, 12, 18, 24, 36, 48, 54 Mbps
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Ubiquiti UniFi Wi-Fi 6 Pro Access Point — High-Performance Dual-Band Coverage The U6 Pro is a premium indoor WiFi 6 access point delivering exceptional performance for homes and offices. With dual-band technology, it reaches an aggregate throughput of 5.3 Gbps — 4.8 Gbps on 5 GHz (4x4 MU-MIMO) and 573.5 Mbps on 2.4 GHz (2x2 MU-MIMO). Support 300+ concurrent clients with advanced features including Guest Traffic Isolation for enhanced security, full 4x4 MIMO with 160 MHz bandwidth, and seamless management via the UniFi Network app. Setup takes minutes, and the device operates at -30 to 60°C with IP54 weatherproofing. Powered by PoE (44–57VDC), consuming just 13W maximum. Includes universal mounting plate and hardware for wall or ceiling installation. Certifications: CE, FCC, IC. Note: LED limited to white and blue modes due to chip supply constraints.
